The Reticle Limit: Why Advanced Packaging Governs Compute Scaling
By Razvan Ceapa ·
Blogger edition published 10 October 2026 · Source updated 10 October 2026. Original publication dates are preserved; the website import date is not used.
Historical article. Figures, holdings and views reflect the original publication, not current conditions. Claims are preserved, not independently revalidated. Capital at risk.

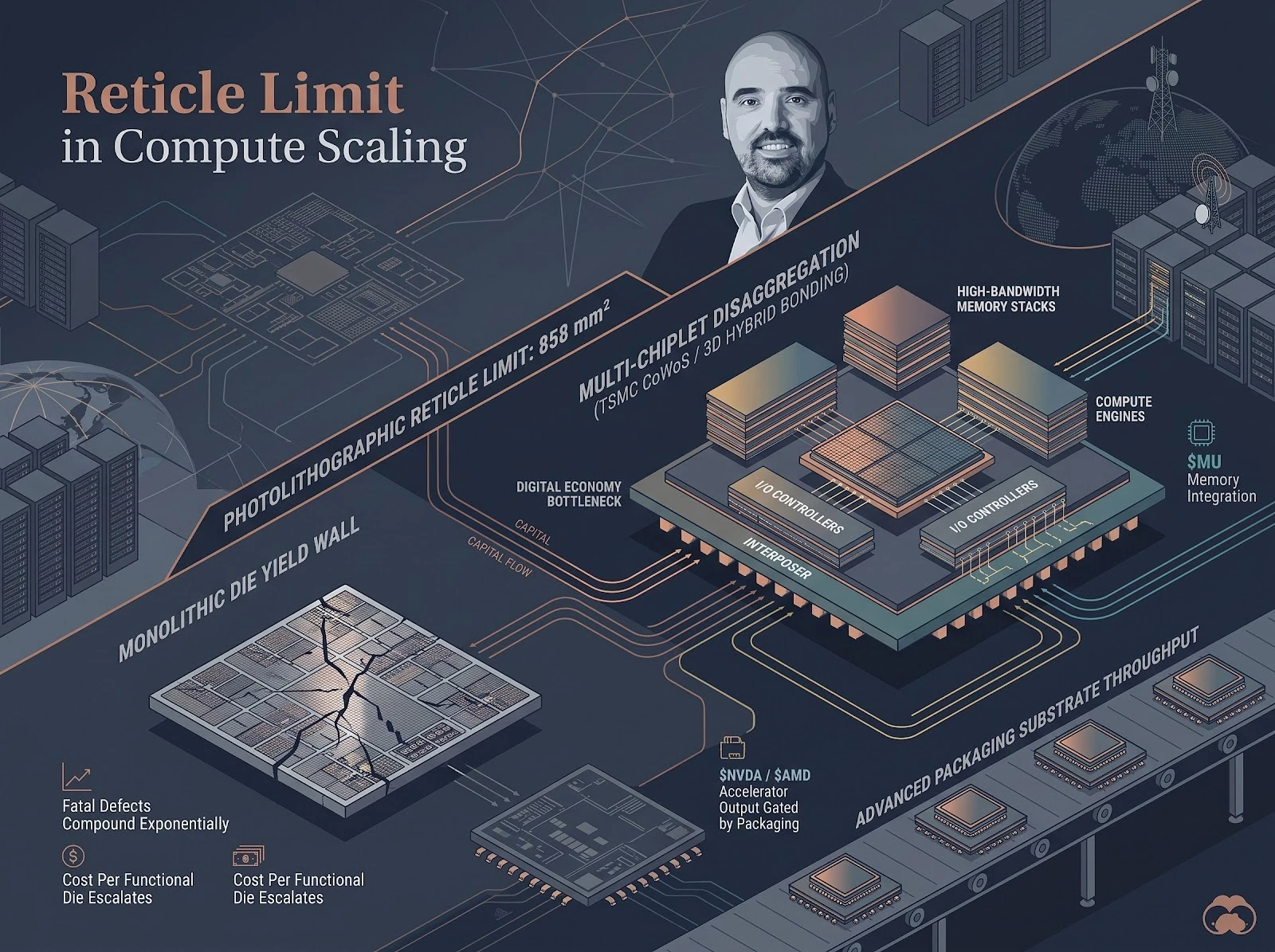

Compute scaling has shifted from lithographic node shrinks to packaging architecture. The immediate physical barrier to artificial intelligence hardware is not raw transistor density, but the standard photolithographic reticle boundary of 858 mm².
In semiconductor fabrication, scanner optical lenses project circuitry within a standardized maximum exposure field: 26 mm by 33 mm. This creates an impassable single-die ceiling. Attempting to manufacture a single monolithic silicon die near this 858 mm² limit triggers severe yield collapse. Defect distributions dictate that as die area scales toward the exposure limit, the probability of fatal printing errors compounds exponentially, destroying cost-per-die economics.
Simultaneously, migrating from 3nm to 2nm provides diminishing returns. Gate-all-around (GAA) nanosheets increase transistor density, but physical interconnect resistance-capacitance (RC) delay and thermal dissipation limit actual frequency improvements.
The industry solution is multi-die disaggregation. To bypass the reticle ceiling, leading accelerator architectures split single dies into modular chiplets. TSMC’s CoWoS (Chip-on-Wafer-on-Substrate) and high-density 3D hybrid bonding allow multiple compute engines, I/O controllers, and High-Bandwidth Memory (Micron) stacks to function as a unified virtual die spanning several times the original reticle limit.
Accelerator output for NVIDIA and AMD is no longer bounded by front-end raw wafer starts. Aggregate system output is strictly constrained by advanced packaging substrate throughput and thermal integration limits. Capital allocation in hardware now requires tracking back-end packaging allocation at TSMC and high-density memory integration, as the critical bottleneck of the digital economy has relocated directly to the interposer.
